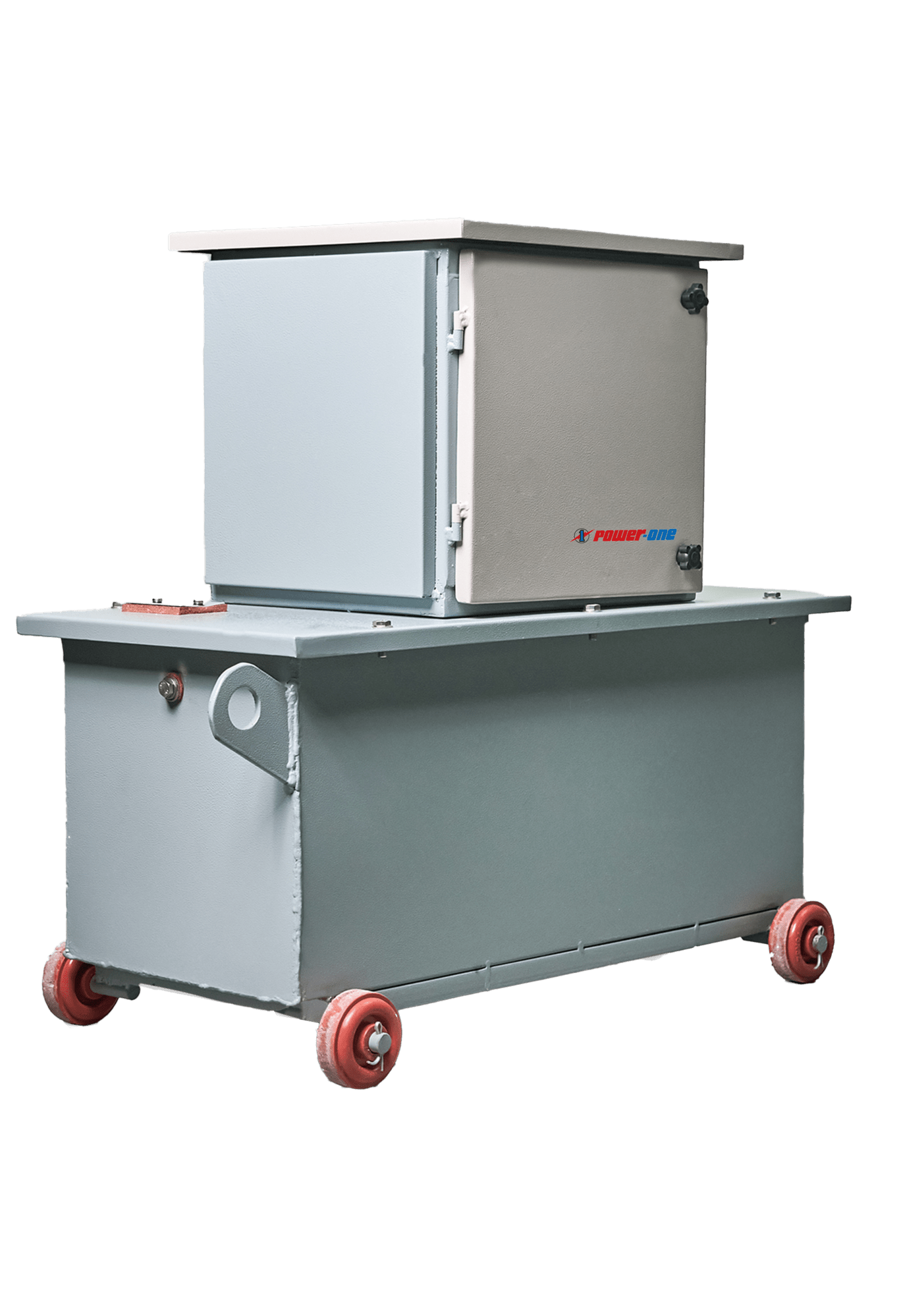

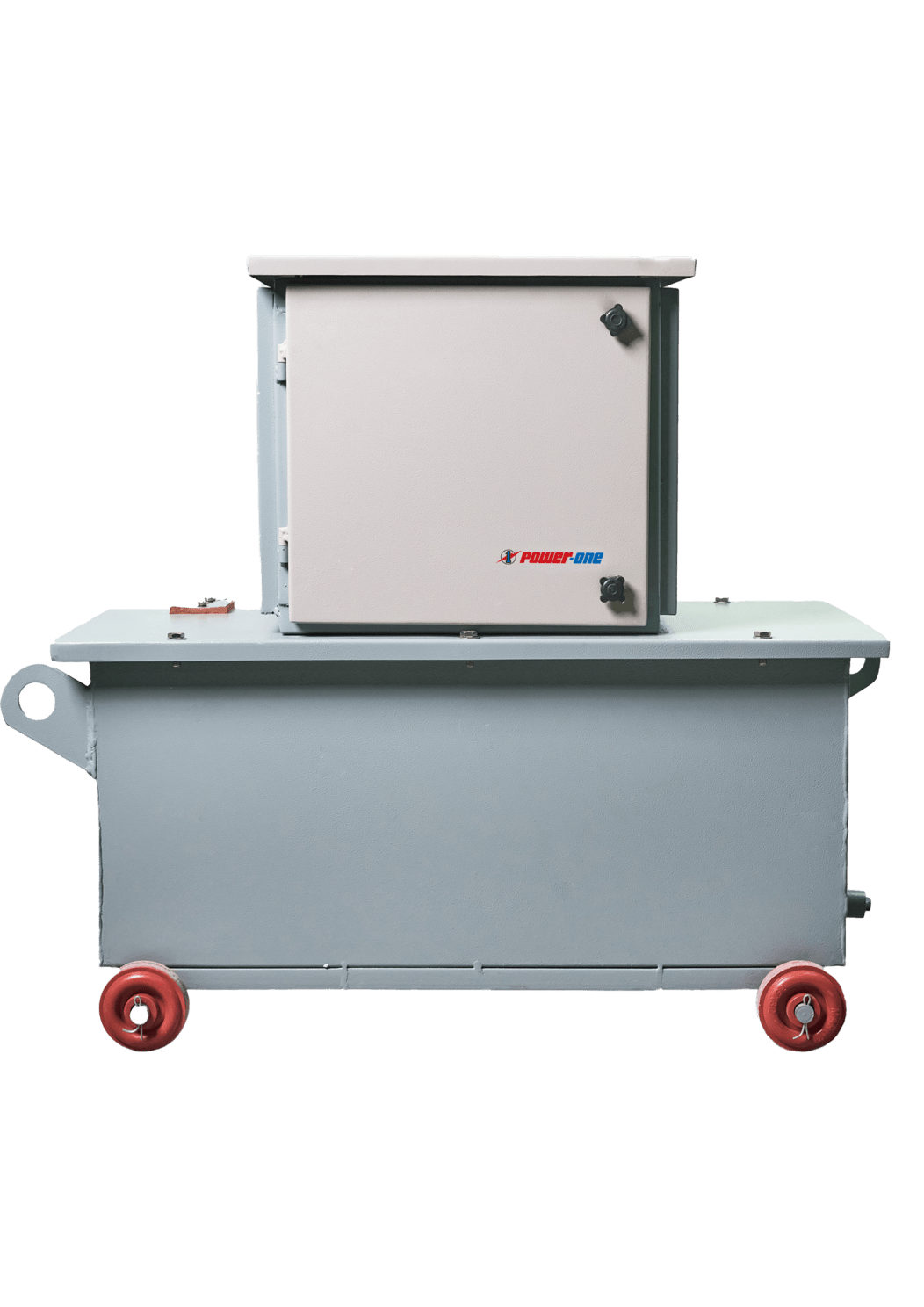

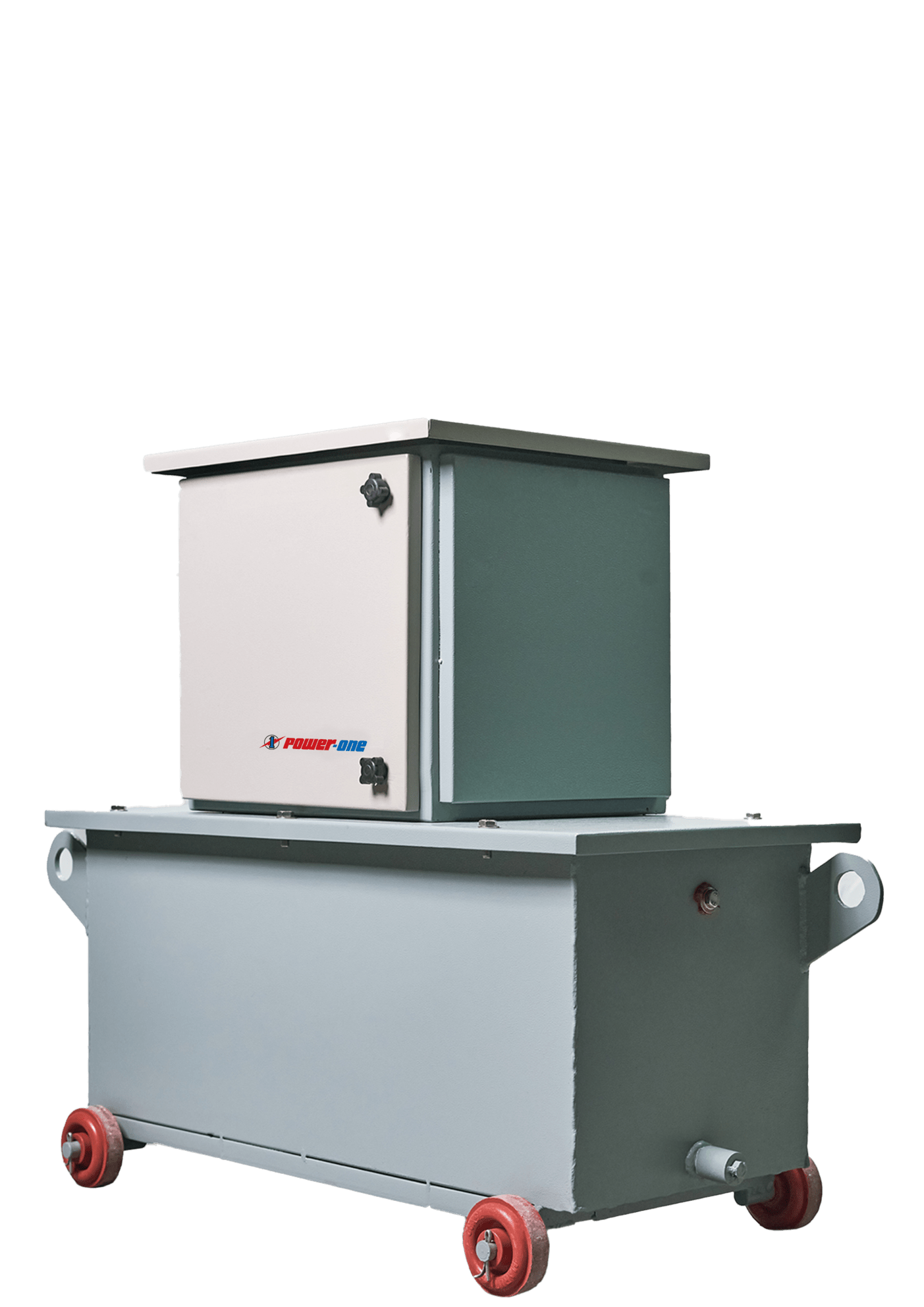

Servo Controlled Voltage Stabilizer (SCVS)

The Servo Controlled Voltage Stabilizer incorporates an auto transformer paired with a motor and a Buck Boost Transformer. The Buck Boost Transformer features two windings: the primary and the secondary. The primary winding is connected to the Auto Variable Transformer, and the secondary winding is connected in series with the supply line.

The primary voltage of the Buck Boost Transformer is regulated by adjusting the position of the moving arm of the auto transformer, facilitated by the motor. This arrangement allows for precise control over the addition or subtraction of line voltage.



Rating Available

Air-cooled

Single Phase 1KVA, 2KVA, 3KVA, 5KVA,
10KVA, 15KVA.
ThreePhase 5KVA,7.5KVA,10KVA ,15KVA,20KVA,25KVA,
30KVA,40KVA,50KVA,60KVA
,75KVA,80KVA,100KVA.

Oil-Cooled

20KVA,30KVA,50KVA,75KVA,
80KVA,100KVA,120KVA,150KVA,
175KVA,200KVA,220KVA,250KVA,275KVA,
300KVA,350KVA,400KVA,500KVA

Key Features

  • High Efficiency & Fast Response: Minimizes energy loss and rapidly adjusts to voltage changes.
  • Wide Input Voltage Range: Handles a broad range of input voltages for greater versatility.
  • Audible Alarm for Trips: Notifies users of faults for improved safety and immediate response.
  • 99.99% Reliable Control Circuit: Exceptionally dependable with minimal risk of failure.
  • Stable Voltage Output: Eliminates overshoot, undershoot, and hunting.
  • Built-In Bypass Switch: Allows manual control and easy maintenance.
  • Fewer Active Components: Reduces likelihood of component failures.
  • Gen-Set Compatible Circuit: Specifically designed for generator set use.
  • Unaffected by Power Fluctuations: Maintains performance despite changes in power factor and frequency.
  • Single PCB for Three-Phase Control: Simplifies design and enhances efficiency in three-phase systems.
  • Rapid Voltage Correction: Adjusts quickly to rate of input fluctuations.
  • Dedicated PCB for Motor Triac Switching: Ensures safer and more reliable motor operation

    • Application

    Plain Paper Copiers, Photography Equipments, Computers, CNC Machines, Radio and Televisions Transmitters, Defence equipments, Navigational Equipments, Electro-Medical Equipments, Laboratories Equipments, Process Control Equipments, Telephone Exchanges, AC Plants, Recording and Processing Equipments and many other Industrial and Commercial Applications.
