Grid Tie / On Grid Inverters

Power-One offers the industry’s widest range of on-grid solar inverters from 1kW all the way up to 250kW string inverters. We do offer variants that will enable homeowners and commercial system owners to benefit from monitoring, remote app control, and future upgrade possibilities with lithium storage/hybrid inverters with end-to-end operation and maintenance support.

Grid tie inverter provides net metering capabilities and helps in converting DC power into AC, making customers become self-sufficient in power generation and also helping them to produce enough power to export back to the local electrical grid. Our grid-tied solar inverters make power cuts a dream for you without depending on diesel generators or battery-powered inverter systems. With just a 1kW solar inverter system, you can save up to Rs. 8500 per year as compared to grid electricity.

Innovative Technology

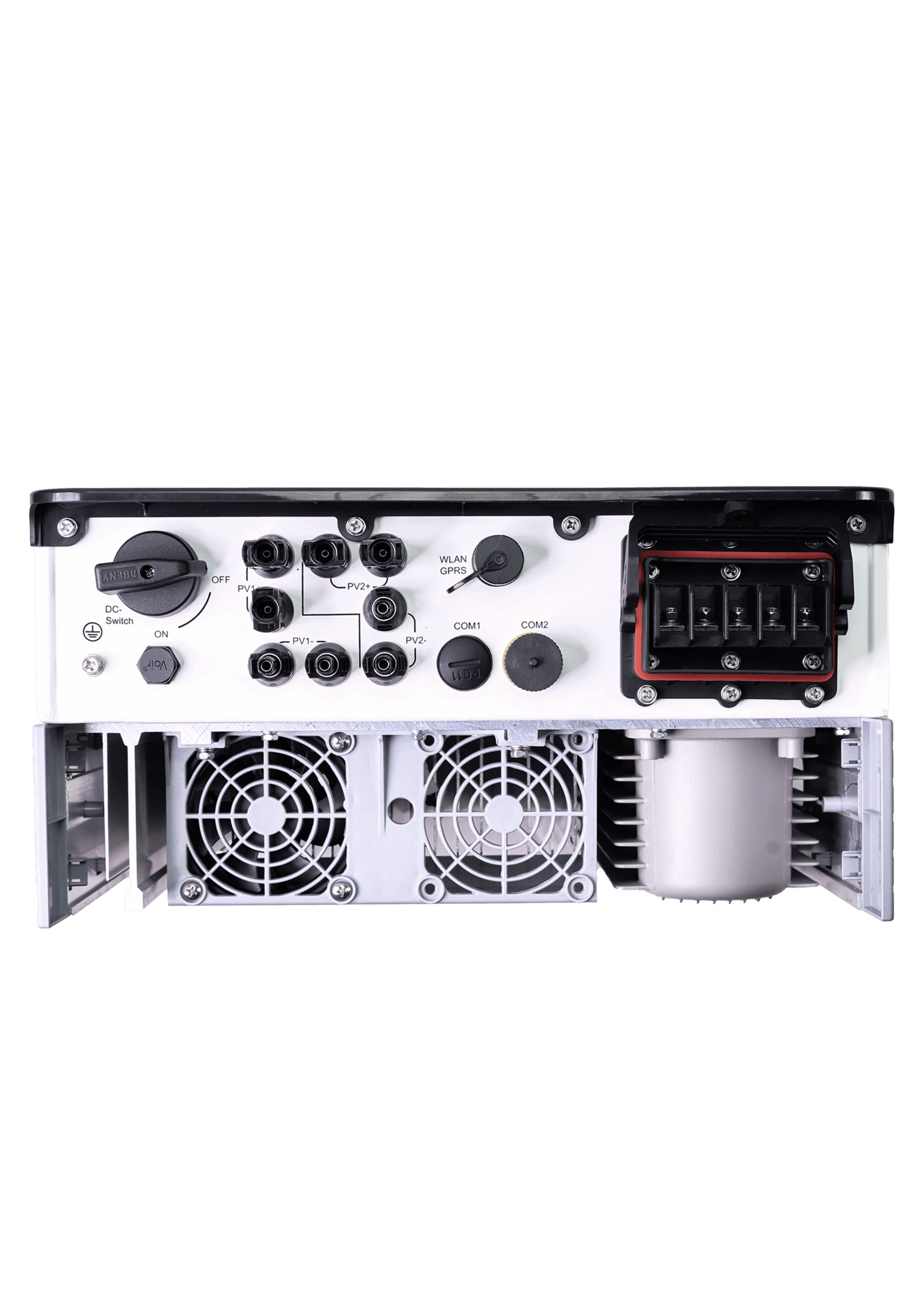

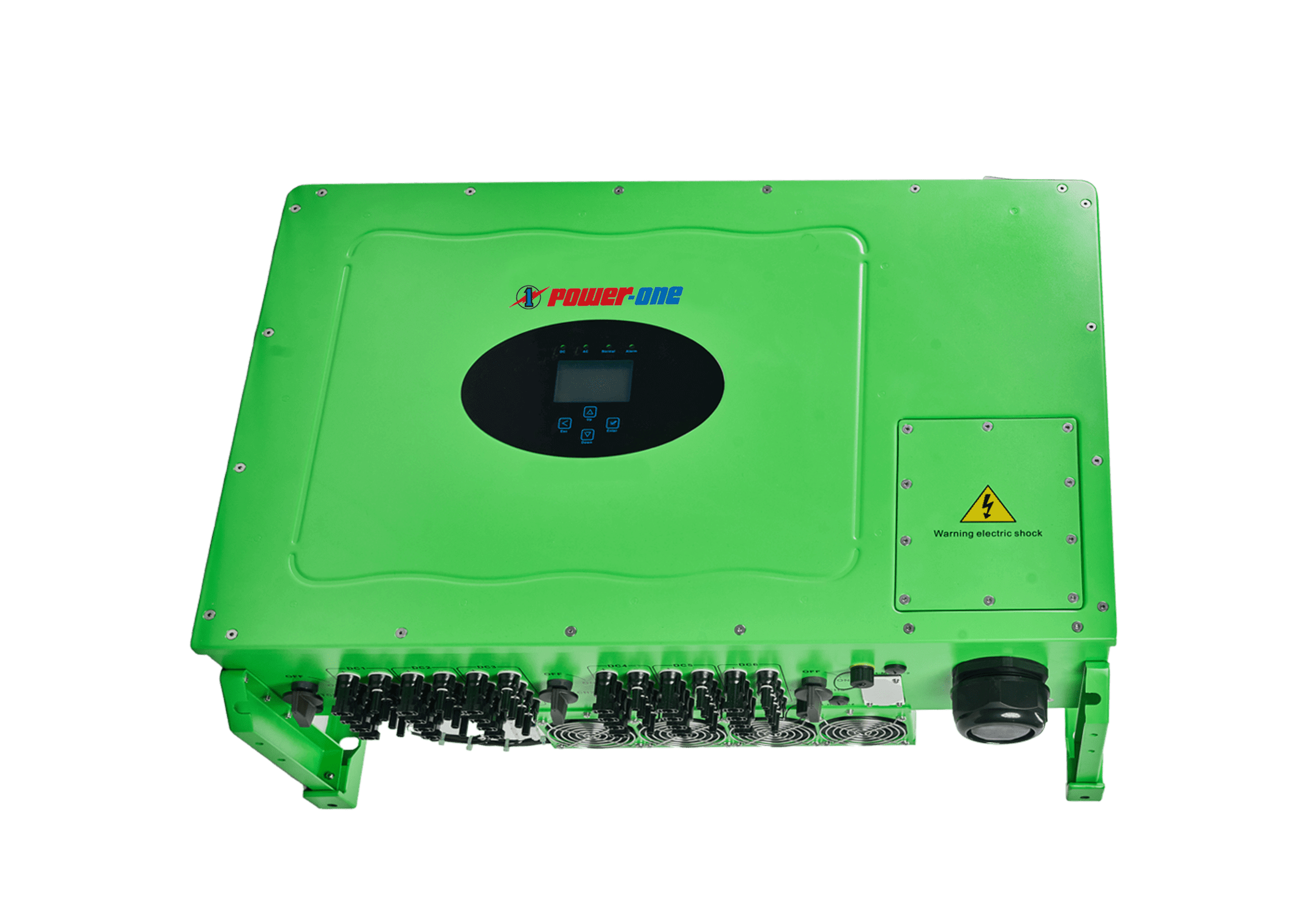

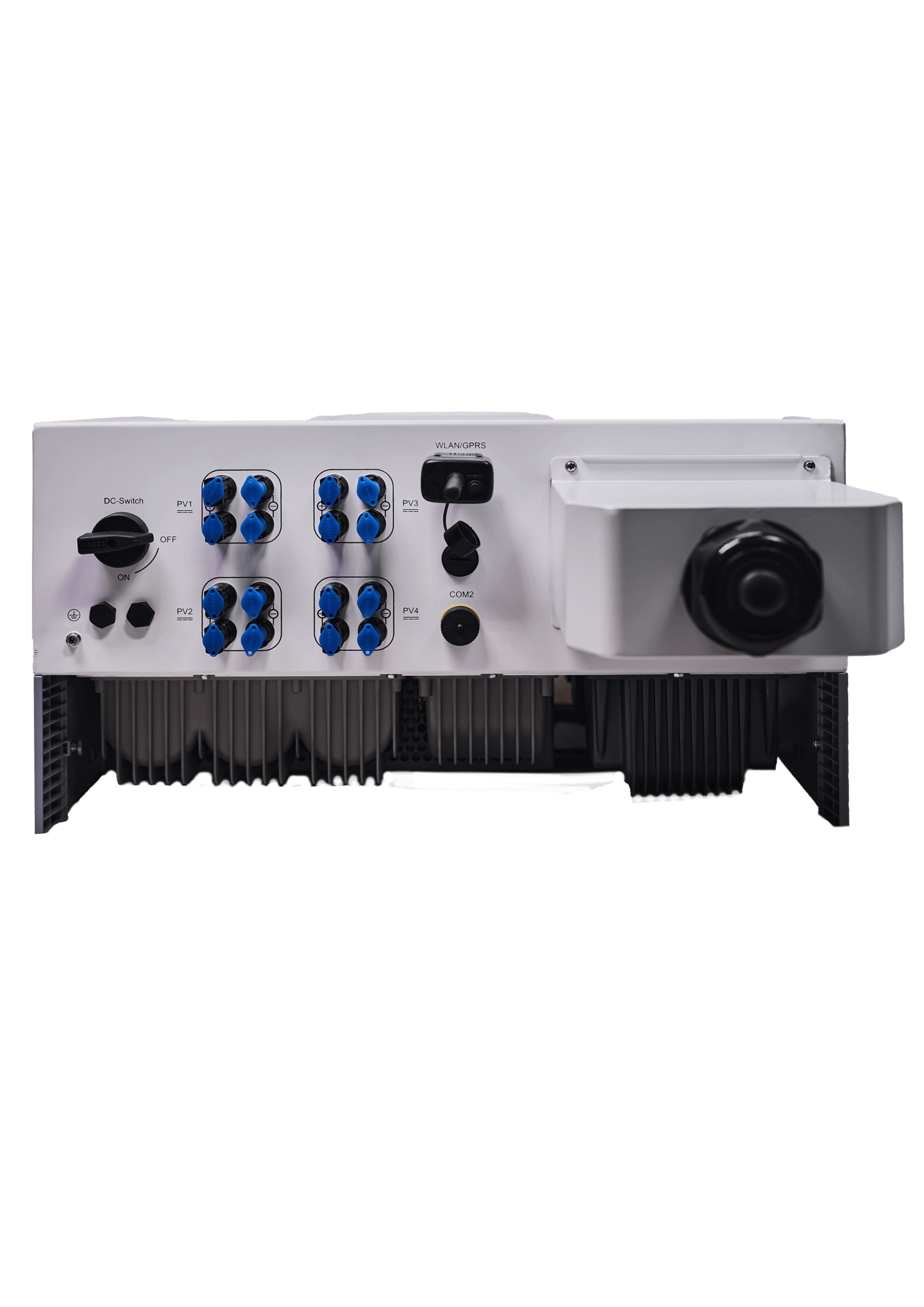

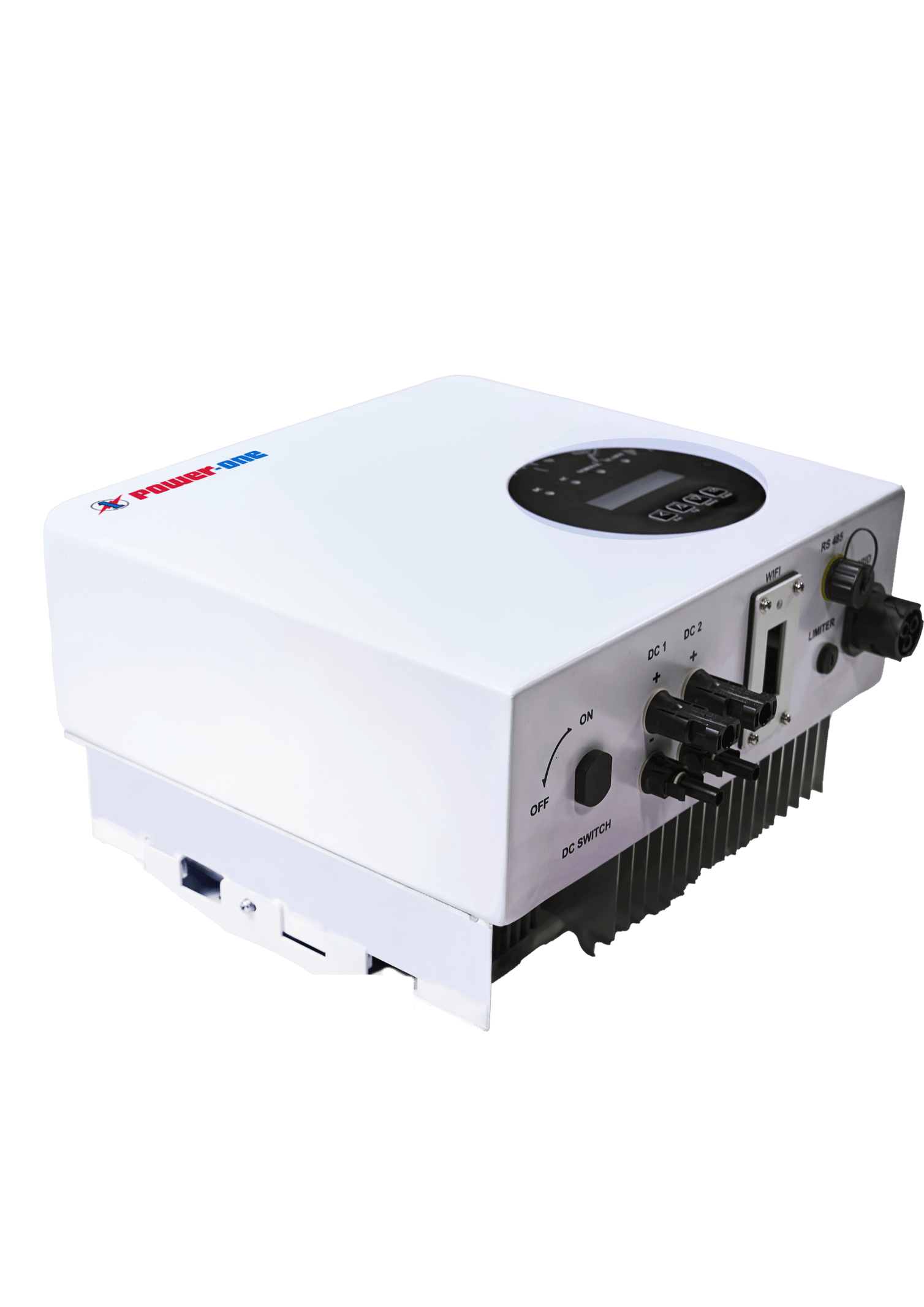

On Grid Inverters

1kW - 5kW Single Phase
5kW - 250kW Three Phase
Download Download Brochure
• 61683 : 1999 : Efficiency
• 62116 : 2014 : Anti islanding ( IS 16169 )
• 61727:2004 : Grid Interface
• EN 62109-1 : 2010, EN 62109-2 : 2011 : Saftey (IS 16221)
• IEC 61000 : EMC & EMI
• IEC 60068-2-1 : 2007 Part 2-1, 60068-2-2 : 2007 Part 2-2, 60068-2-14 : 2009 Part 2-14,
• IEC 60068-2-30: 2005 Part 2-30 : Environmental
solar-off-grid
Salient Features
  • 30% to 50% DC Overloading with industry-leading power generation
  • 10% AC Overloading
  • Built-in DC and AC surge protections
  • Wide Input voltage range
  • RS485, Remote Monitoring with Wi-Fi/GPRS
  • Numerous Protection Functions and Advanced Grid Capabilities
  • Single/Dual/Multi MPPT Design with Accurate MPPT Algorithms
  • Natural Cooling/Forced Cooling
  • Compact and Light Design for an Easy Installation
  • Transformer less GT Topology
  • Mobile App Monitoring
  • Optional Export Power Block Function, Weather Monitoring, String Level or Panel Level Monitoring with Optimizers
Capacity 1 kW 2 kW 3 kW 5 kW 6 kW
Modle No. SGTU-101-N SGTU-102-N SGTU-103-SN SGTU-105N SGTU-106N
Nominal Input DC Power(KW) 1 2 3 4 5 6
Max. DC Input Voltage(V) 500
Startup DC Input Voltage(V) 80 120
MPPT Operating Range(V) 70-500 100-500
MAX. DC input Current (A) 13A
Max .DC input Current (A) 1 1 1 2 2
Number of Strings /MPPT 1 1 1 1 1
OUTPUT
Rated Output Power(KW) 1 2 3 5 6
Rated AC Grid Voltage(V) 230
AC Grid Voltage Range(V) 140-290
Rated Grid Frequency(Hz) 50
Operating Phase 160-280
Rated AC Grid Output Current(A) 4.3 8.7 13.1 22 26
THD(%) < 3%
Grid Frequency Range 45.55
Max. Efficiency(%) 97.3(%) 97.5(%)
