SmartE Resi Basic

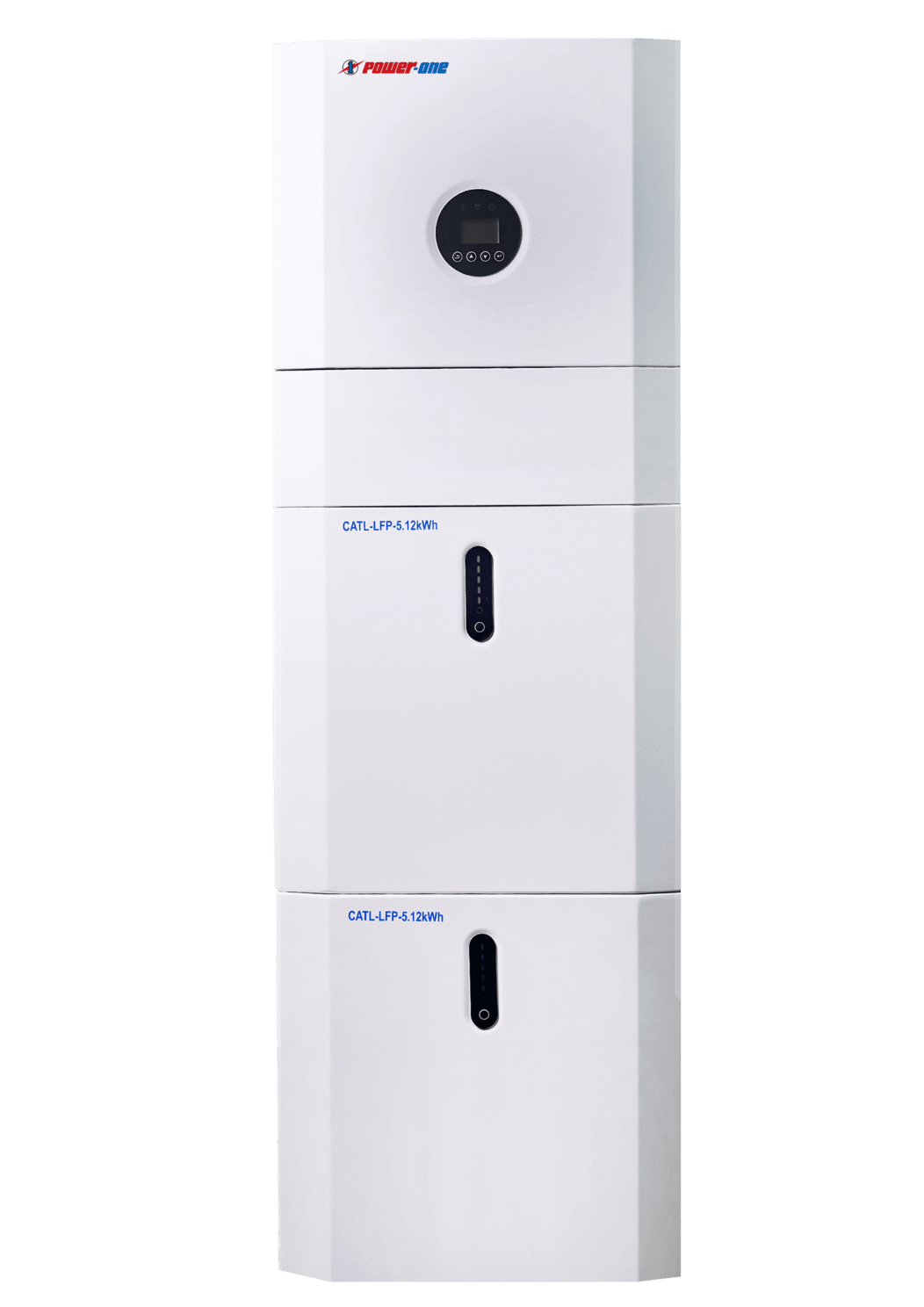

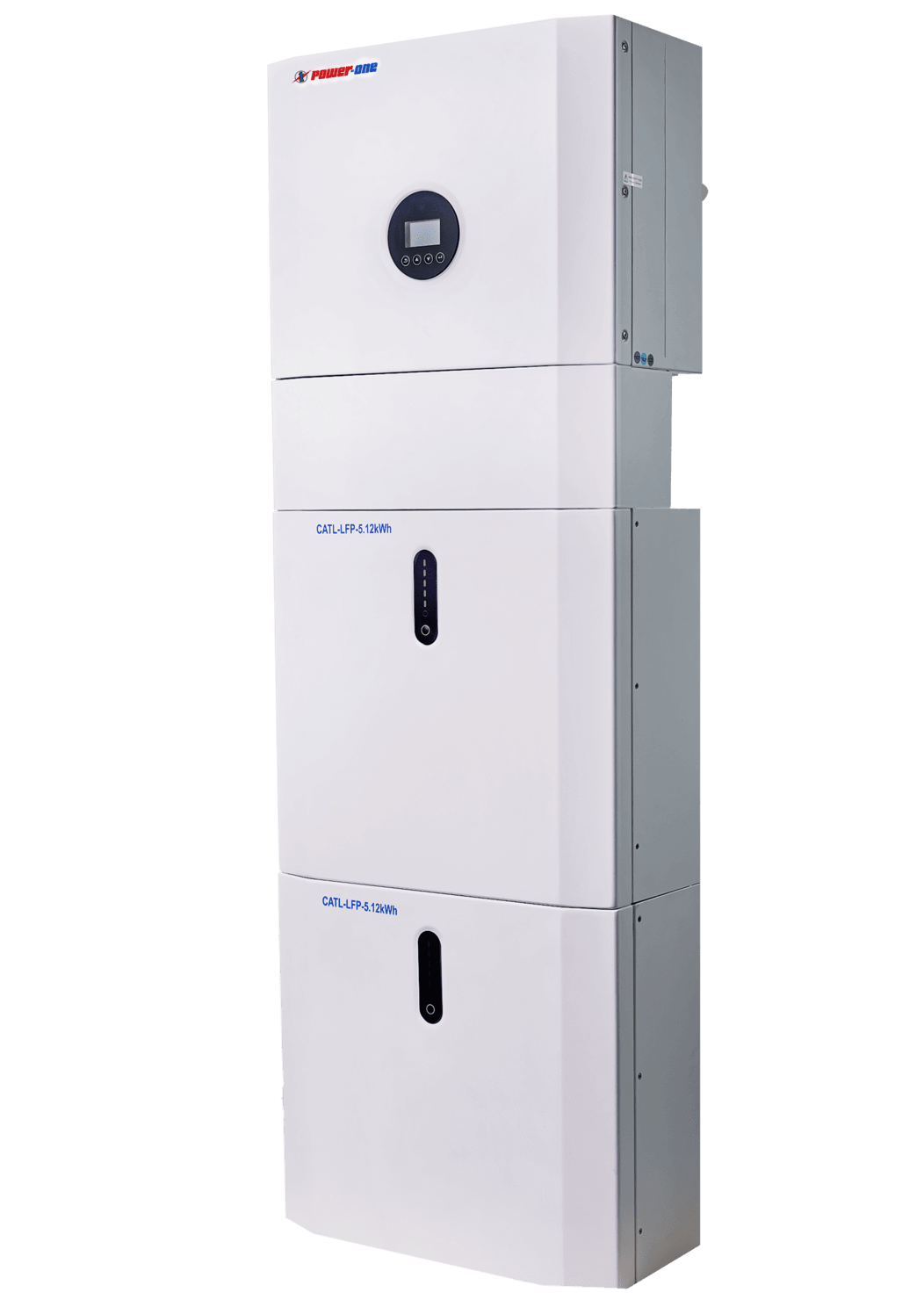

SmartE-Basic is an all-in-one solution Battery Energy Storage System (BESS), which integrates a Hybrid inverter and a Li-Ion (LiFePO4) battery into one compact and stylish wall/floor mounted unit, it delivers power and performance.

ESS offers economical and self-sufficient solution, which allows home owners, educational institutions, small industries, banks, and government buildings loads to be used on the solar power during day time, store the excess generation in battery and export the energy back to the grid during sun hours.

Product features including an easily scalable Lithium-ion battery module for energy expansion which is lighter than lead-acid batteries and a compact/ stylish design. Moreover, ESS offers 3 operation modes with 9 intelligent operation settings to adapt to the customer load pattern. It is easy to configure between different operation modes based on user’s needs regarding their energy management, include User-programmable PV power supply priority, charging source priority, load supply source priority, and power usage/charging time based on peak/off-peak time.

ESS

Energy Storage System

Battery module

Cumstomizable Battery Capacity
12-60 kVALi-Ion (LiFePO4) battery module
Download Download Brochure

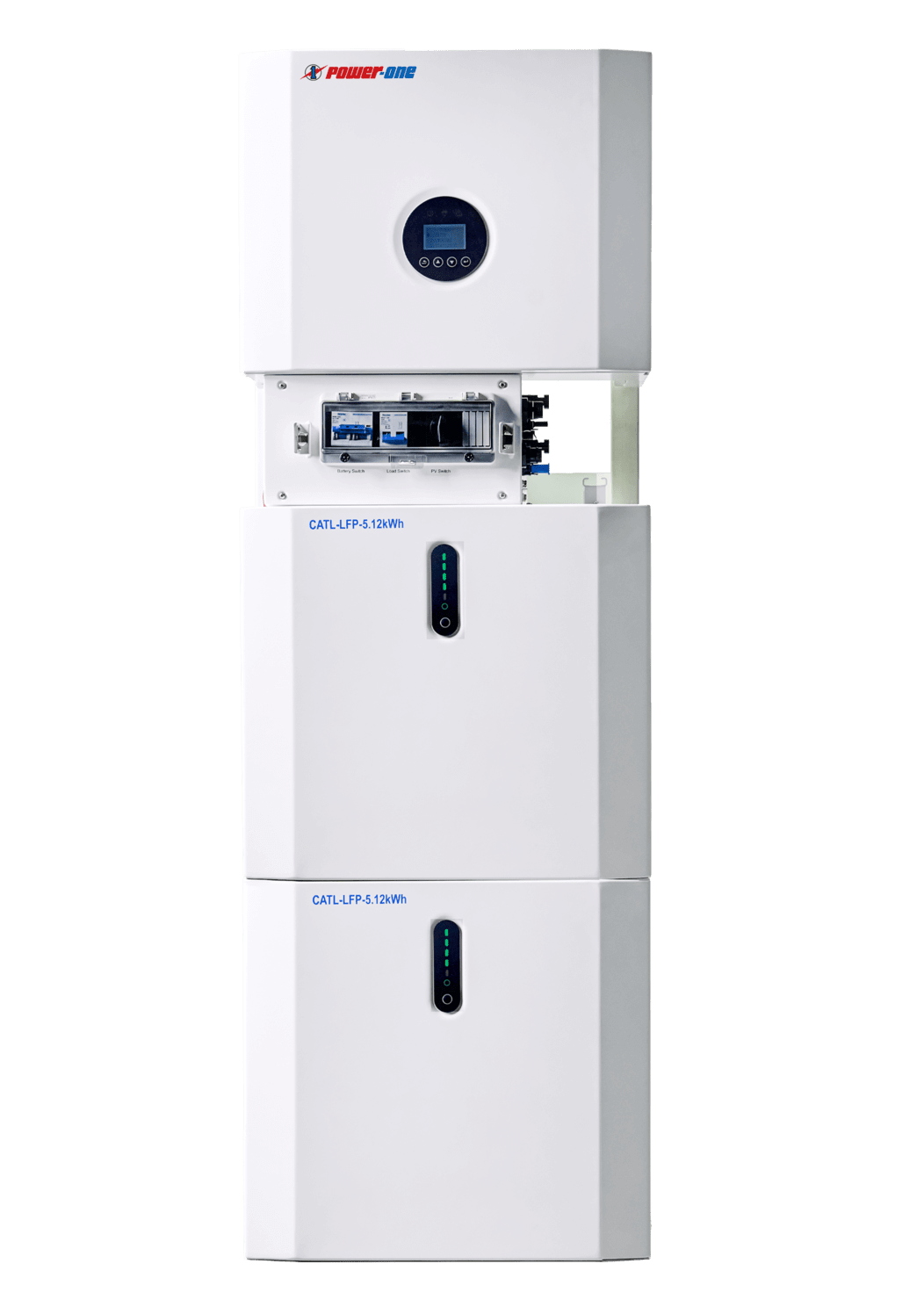

Power-One Energy Storage System (ESS) is an all-in-one solution, which integrates a Hybrid inverter and a Li-Ion (LiFePO4) battery module in to one compact and stylish wall/floor mounted unit and it delivers power and performance.
1. 2kW 24V with Li-Ion Battery Pack of 2kWh & 4kWh
2. 3kW 48V with Li-Ion Battery Pack of 3kWh & 6kWh
3. 4kW 48V with Li-Ion Battery Pack of 4kWh & 8kWh
4. 5kW 48V with Li-Ion Battery Pack of 5kWh & 10kWh
5. 10kW 48V with Li-Ion Battery Pack of 10kWh & 20kWh
Salient Features
  • Plug and play easy installation with built-in fuse protections.
  • Pure sine wave output
  • Self-consumption and Feed-back to the Grid
  • Programmable supply priority for PV, Battery or Grid
  • User-adjustable battery charging current
  • Programmable multiple operation modes: Grid-Tie, Off-Grid, and Grid-Tie with backup
  • Built-in timer for various mode of ON/OFF operation
  • Multiple communication for USB, RS 232, Modbus, SNMP, GPRS, and Wi-Fi
  • Monitoring software for real-time status display and control
  • Scalable Li-Ion battery expansion
  • Advanced Battery Management System
  • High efficiency
  • High Charge / Discharge rate (Fast charging in 1-2 hours compared to 8-10 hours for lead acid batteries.)
  • Greater than 3,000 cycles life @90% DoD
Techincal Specification
Capacity 2 KW 3 KW 4 KW 5 KW 10 KW
Model No. ESS - 102B ESS - 103B-SM ESS - 104B ESS - 105B ESS - 103B
RATED OUTPUT POWER 2000 W 3000 W 4000 W 5000 W 10000 W
PV INPUT (DC)
Max. PV Power 2000 W 3000 W 4000 W 6000 W 10000 W
Max. PV Array Open Circuit Voltage 145V DC 900 VDC
MPPT Range at Operating Voltage 30 VDC - 115 VDC 60 VDC - 115 VDC 400 VDC - 800 VDC
Number of MPPT 1 2 2
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220 / 230 / 240 VAC 400 VAC ( P-P )
Feed-in Grid Voltage Range 184 - 264 VAC OR 195-253 VAC(Settable) 184 - 265 VAC/Phase
Feed-in Grid Voltage Range 47.5 Hz - 57.5 Hz
Nominal Output Current 8.7A 13A 17.4A 21.7A 14.5A Per Phase
Power Factor > 0.99
Maximum Conversion (DC/AC) 90% 92.50% 93% 92.50% 93.50%
OFF-GRID OPERATION (HYBRID MODE)
GRID INPUT
Acceptable Input Voltage Range 170 - 280 VAC Per Phase
Nominal Frequency 50 Hz
Maximum AC Input Current 30A 40A 40A Per Phase
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC 400 VAC ( P-P )
Output Waveform Sine Wave
BATTERY & CHARGER
Nominal DC Voltage 24 VDC 48 VDC
Maximum Charging Current 140A 180A 200A
BATTERY STORAGE SYSTEM
Capacity 2000Wh 3000Wh 4000Wh 5000Wh 10000Wh
Nominal Voltage 25.6V 51.2V 51.2V 51.2V 51.2V
Full Charge Voltage 29.20V 56V 56V 56V 56V
Full Discharge Voltage 21.6V 43.2V 43.2V 43.2V 66A
Standard Charge Current 26A 26A 40A 40A 43.2V
Maximum Charge Current 40A 40A 60A 60A 100A
Standard Discharge Current 26A 26A 40A 40A 66A
Max Discharging Current 56A 56A 84A 84A 100A
Peak Discharge Current 120A 120A 180A 180A 140A
Protection BMS, Breaker BMS, Breaker BMS, Breaker BMS, Breaker BMS, Breaker
Communication Cable RS485/RS232 RS485/RS232 RS485/RS232 RS485/RS232 RS485/RS232
Power-One enegry storage system

Power-One Energy Storage System (ESS) is an all-in-one solution, which integrates a Hybrid inverter and a Li-Ion (LiFePO4) battery module in to one compact and stylish wall/floor mounted unit and it delivers power and performance.
